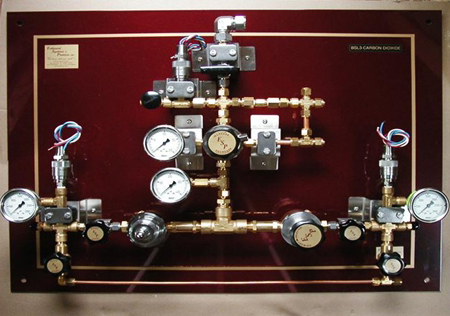

Changeover Manifolds

Changeover manifolds are employed when frequent change out of cylinders is a necessity or when a continuous gas supply is a must. Available in manual, semiautomatic, automatic, high purity and electronically regulated units, our changeover manifolds include the following options:  relief valves, pressure switches, captured and vented regulator bonnets, vented relief valves, audible and visual alarms, remote readouts and weather-proof enclosures.

Automatic changeover manifolds are by far the mainstay of our offering. From 1x1 changeover regulator systems to 12x12 automatic switchover systems (and greater if required), we've done it all. Whether the systems are conctructed with brass or stainless steel, designed for normal, medium, high or ultra-high flow applications, ESP has a manifold to fit your needs.

Of course, for oxygen systems, we take great care in material selection and in the construction design to eliminate-quick opening valves. On systems with pressures above 400 psig, we advise against using stainless steel if at all possible due to the effects of adiabatic compression and the low flammability temperature of stainless steel. Enhanced Systems & Products, Inc. provides safe solutions, such as all-monel flexible-rated pigtails, slow opening valves and other necessary components for these types of critical applications.

To complement these manifolds, we offer various accessories, including changeover alarms or annunciators, low-pressure alarms and cylinder handling equipment (cylinder wall brackets, gas cabinets, cylinder storage racks).  Automatic switchovers can be factory-installed in gas cabinets or on top of cylinder storage racks.

ESP can custom design systems to meet any needs that you might have. Contact us today at (215) 794-6942 to discuss your current project.  " We know what you need ! "
